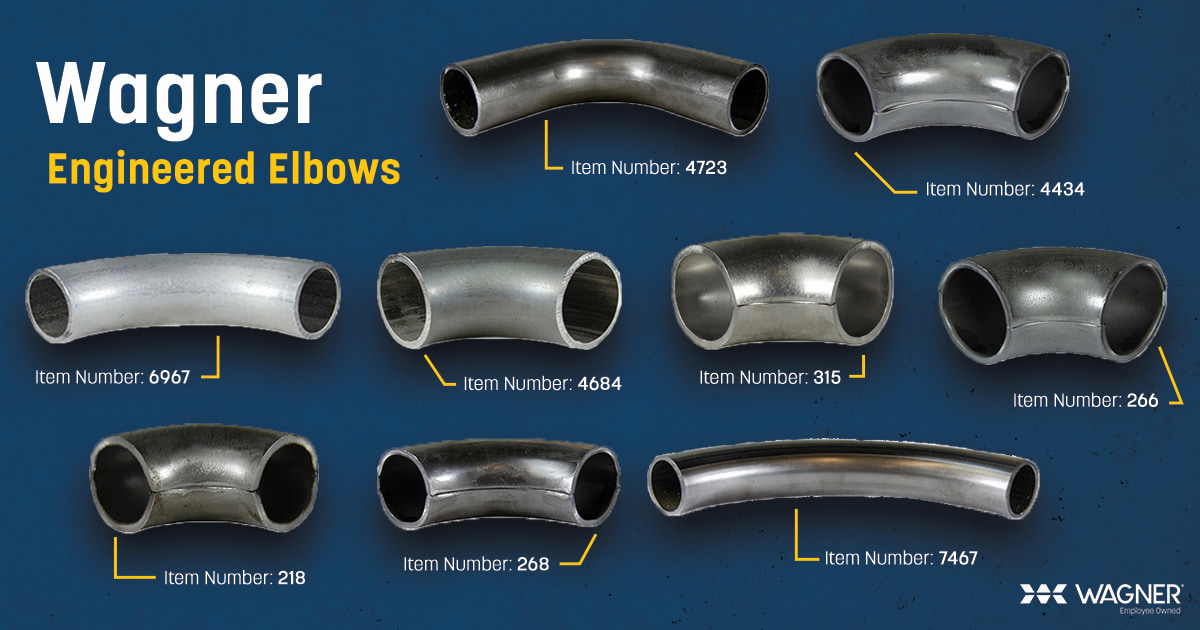

Railing systems depend on many small choices; each component shapes how the finished rail looks, feels and performs. Selecting the right elbow can be challenging with varying options in material, radius, thickness, angle and more. These variables work together to influence both the design intent and the practical realities of building a reliable system.

Anyone involved in designing, specifying or maintaining railings benefits from understanding how elbows function as structural elements. Precise geometry, smooth transitions and materials that withstand their environment all rely on choosing components that truly fit. Before you pick an elbow or define a turn, understand the internal geometry that shapes how the component performs.

Pipe Size vs. Tube Size

Determining whether your railing system uses pipe or tube is the first step in choosing the correct elbow. Although they may look similar, they follow completely different sizing standards.

Pipe Size

Nominal Pipe Size (NPS) sets the dimensions for pipe, but the listed size differs from the actual outside diameter. For example:

Tube Size

Tubing is sized by its actual outside diameter (OD). For example, a 1.50" tube has a 1.50" OD. When selecting a tube elbow, the elbow must match the tube's outside diameter and wall thickness to ensure proper fit.

How This Affects Elbow Selection

Pipe and tube elbows are engineered differently. Pipe elbows match their nominal pipe size and schedule, so the pipe's wall thickness and tolerances determine their fitment. Tube elbows feature true outside diameters and meet tighter dimensional tolerances.

Pipe and tube elbows are not generally interchangeable because they are designed for different sizing systems. This is why a 1.50‑inch tube elbow will not fit 1‑1/2‑inch pipe.

The outside diameter is a primary dimension that determines which elbow will fit your railing systems, regardless of whether it’s pipe or tube. Below are the most common ODs used in railing and the typical applications for each.

Material selection plays a major role in long-term performance. The material of an elbow affects strength, corrosion resistance, weight and appearance.

Aluminum elbows offer excellent corrosion resistance at a fraction of the weight of steel. They hold up well outdoors and in high-moisture environments because aluminum naturally forms a protective oxide layer. Their lightweight constructions makes handling easier, while their formability make it a popular choice for ADA continuous handrails and ramp railings that require smooth, uninterrupted transitions.

Steel elbows provide superior strength and impact resistance, making them ideal for demanding industrial, commercial and code-compliant safety railings. Steel is also one of the most weld‑friendly materials, allowing fabricators to create strong, clean joints. However, raw carbon steel corrodes easily, so manufacturers typically galvanize, paint or powder-coat elbows to ensure long‑term durability. When properly protected, steel offers exceptional structural reliability and a long service life.

Stainless steel elbows combine high strength with excellent corrosion resistance and a premium, modern appearance. Their resistance to rust makes them suitable for both interior and exterior installations, including coastal, industrial or high-moisture environments when the appropriate stainless grade is selected. Stainless steel is also a popular choice for ADA railings where aesthetics, durability and low maintenance are important. While heavier and more expensive than aluminum, stainless steel delivers exceptional longevity, structural performance and visual consistency.

Elbow Angles and Directional Changes

Directional changes are a core part of any railing system, and elbows are engineered at specific angles to create smooth transitions. Elbows come in a wide range of angles to accommodate the many ways railing systems change direction.

Standard angles such as 45° and 90° are common because they cover typical directional changes, from slight adjustments to right‑angle turns. However, real‑world installations often require more specialized geometry to match stair slopes, transitions or architectural features. For example:

35° and 55°: Frequently used for stair railings because they closely match common stair pitches and help maintain a smooth, continuous handrail line.

125°, 135°, and 145°: Open-angle elbows used when the railing flares outward rather than turning inward, often seen in architectural or decorative layouts.

180°: Creates a full U‑turn and is commonly used for handrail returns, ramps and continuous handrail systems. ADA standards generally require handrails to return to a wall, floor, guard or post, and 180° elbows are one of the most common fittings used to create these returns.

Selecting the correct angle is essential for smooth flow, proper alignment and code-compliant installation, particularly in stairways or custom layouts.

Bend Radius: Inside Radius vs. Centerline Radius

Bend radius can be measured in two ways: inside radius (IR) and centerline radius (CLR). Each describes the elbow's curve from a different reference point and can influence fit, appearance and layout.

Inside radius (IR) measures the curve at the elbow's inner edge. It is commonly used for architectural and railing applications because it helps describe how compact or gradual a turn will appear. Smaller inside radii create tighter turns, while larger radii produce smoother transitions and require more space.

Centerline radius (CLR) measures the curve at the center of the elbow and is commonly used for pipe and industrial fittings. CLR is often expressed relative to the pipe diameter, such as 1D, 1.5D or 2D, to standardize elbow geometry and fitment within piping systems.

Both measurements describe the same bend from different reference points. Understanding whether an elbow is specified by IR or CLR helps ensure proper fit, appearance and alignment within the finished railing or piping system.

Wall Thickness and Schedule

Wall thickness plays a major role in how an elbow performs. It influences strength, weldability and long-term durability, plus it must match the rest of the railing system for a suitable fit-up and a consistent appearance.

For tubing, manufacturers specify wall thickness by exact measurements such as 0.083”, 0.120" or 0.154". These dimensions are a key factor in the tube’s structural capacity and influence how the elbow welds, bends and aligns with adjacent components.

For pipe, manufacturers define wall thickness by schedule, a standardized rating system used in industrial environments. Schedules such as Sch 10, Sch 40 and Sch 80 indicate increasing wall thickness, though the exact thickness for a given schedule depends on the nominal pipe size.

While wall thickness and schedule both describe the thickness of the material, they are not interchangeable measurements. Tube systems specify thickness directly, while pipe systems use schedule designations that correspond to a thickness based on the pipe size.

Why the Right Elbow Matters

Every elbow in a railing system plays a direct role in how the rail aligns, performs and withstands real-world use. When you understand how size, material, angle, radius and wall thickness interact, you can choose components that support both structural demands and design goals. These details determine whether a railing comes together cleanly or presents avoidable challenges during fabrication and installation. With a clear grasp of what defines each elbow, whether pipe or tube, you can build systems that look better, last longer and function exactly as intended.
