Application
- Matte and transparent lens options
- CCT standards in 4 white options
- 4 solid color options
- Dedicated asymmetric forward throw optical distribution
- Standard in 2700 K, 3000 K and 4000 K
Compliance
- IK10 impact rating and secure installation via dedicated tool
- ETL wet location listed
- IP67 ingress protection
- 24VDC Class 2 operation
- Emergency Backup Inverter compatible
Performance
- 116 lumens per watt LED (500mA)
- Up to 80+ CRI standard, 90+ available upon request
- Solid machined 316 stainless steel mounts flush to 1.90" post
- Standard with 70° beam spread @ +35° nadir

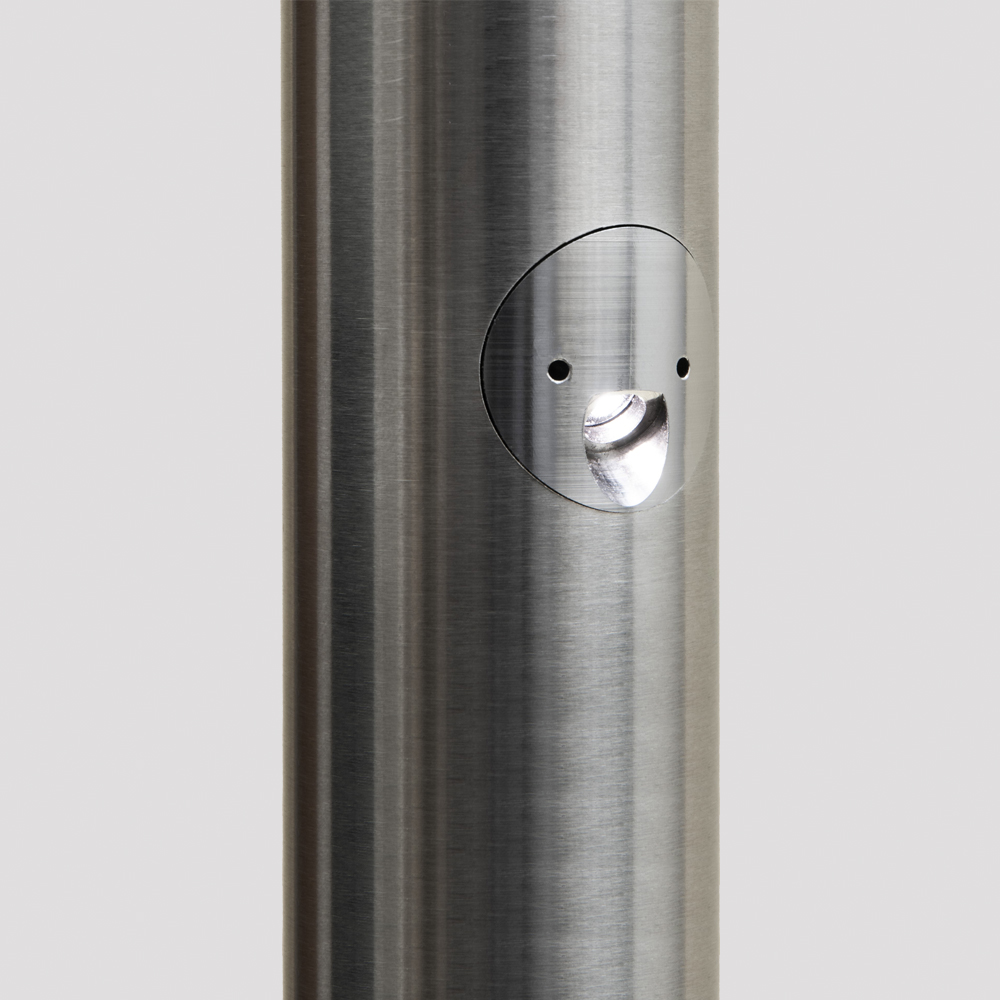

Lumenpod® 30 Point Source Handrail Lighting
Another Lumenrail® Component for Life Safety and Light
Lumenpod® 30 leverages the vertical elements of a post-mounted railing. The fixture's output has a main beam angle at 35° above nadir. The luminaire's asymmetric throw provides a spectacular crescent of illumination across paths, ramps and stairs.
Its machined stainless steel body fits perfectly flush with 1.90" pipe with a simple push-in installation and dedicated removal tool for vandal resistance. Lumenpod 30 provides a no-profile architectural solution for new or retrofit applications and egress compliance opportunities.
Lumenpod® 30 Integrated Post Luminaire
PHOTOMETRICS
CONSTRUCTION
Asymmetric performance is achieved through a 35° projection angle, providing superb illumination results in any application requiring dedicated forward-throw performance.
Lumenpod® 30 features a machined stainless steel body that dissipates heat and protects the LED from tampering or impact. Spring steel wings position it flush with 1.90” posts and an adjustable plate locates the mounting position.
