Application
  • 4 CCT whites and solid colors available
  • Offered in round and square housing options
  • Round post, flat post and surface mounting options
  • 5 IES file supported optic distributions
Compliance
  • IK10 impact rating and secure installation
  • ETL wet location listed, ideal for any indoor/outdoor application
  • Water and weather-resistant to IP67 rating
  • 24VDC Class 2 operation
Performance
  • Standard in 2700 K, 3000 K, and 4000 K for optimal color matching
  • Manufactured from solid machined 316 stainless steel
  • 70° beam spread @ 10° above nadir
  • 1.5W at 116 lumens per watt LED (500mA)

Bantam™ Series

Another Lumenrail® Component for Life Safety and Light

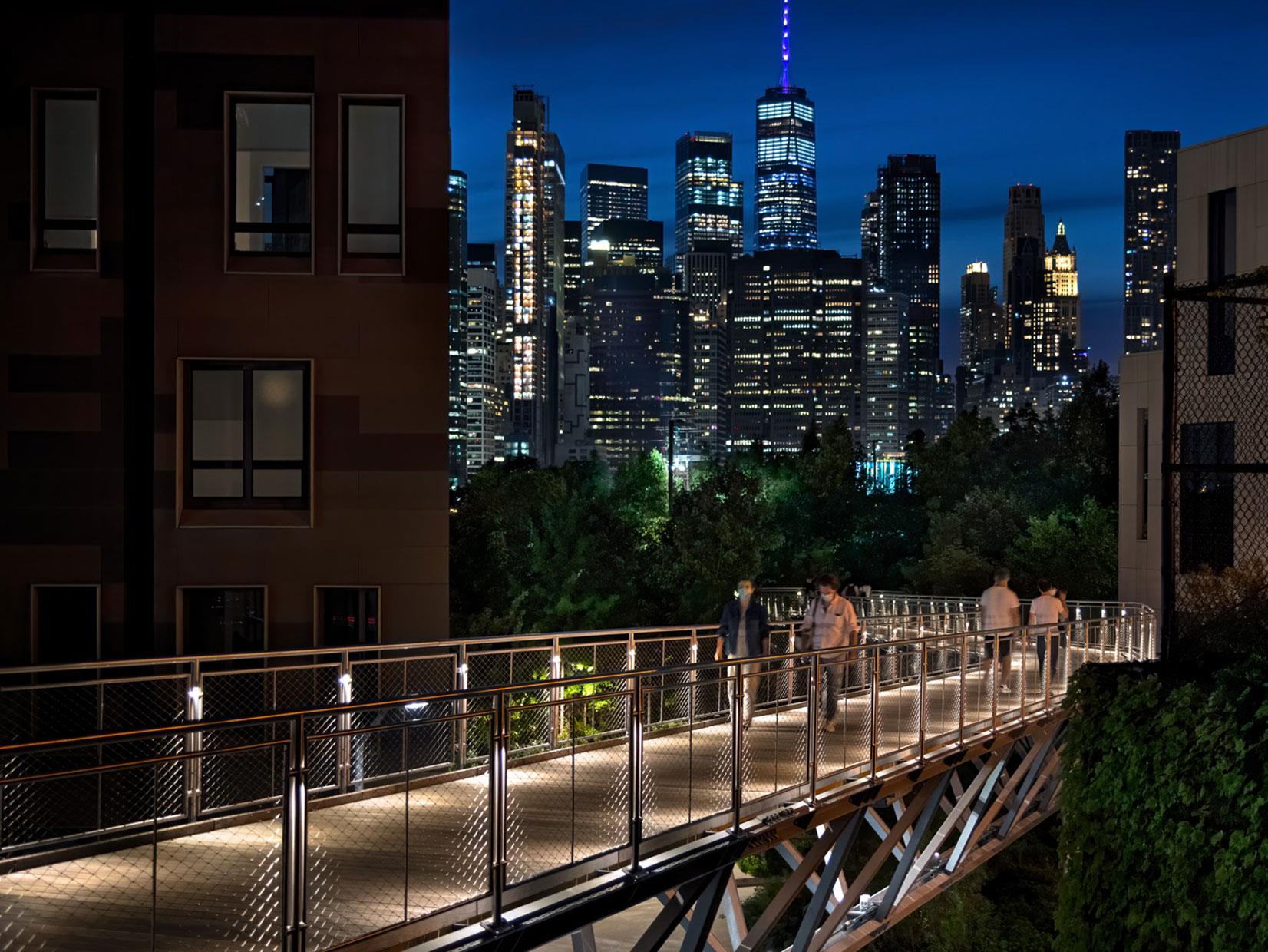

[Bantam™ and Bantam™ SQ are designed for wall grazing and pathway illumination with mounting options for railing posts, walls, decks and entry structures.]

Designed for performance illumination from the post, Bantam™ and Bantam™ SQ surface-mount fixtures combine point-source luminaries with options for round or flat surface installations. These fixtures can satisfy new or retrofit applications and provide egress lighting compliance opportunities.

Manufactured from solid machined 316 stainless steel, both options offer superior harsh environment protection and vandal resistance. Specify either the cylindrical or the rectilinear housing design for an inconspicuous architectural solution. Both are designed with an inherent 1­0° bias above nadir. This asymmetric output projects illumination from the mounting surface towards the path or feature.

Bantam™

Bantam Product Image

Bantam™ SQ

Bantam SQ Product Image

Bantam™ Post Mount Luminaire

PHOTOMETRICS
CONSTRUCTION

Bantam Photometric Image
Bantam™ is designed with an inherent 10° bias above nadir. This asymmetric output projects the illumination from the mounting surface towards the path or feature. IES reports to view or download are available below.
Bantam™ is solid machined 316 stainless steel with security hardware. Available for flat or round surface mounting.

Bantam™ SQ Post Mount Luminaire

PHOTOMETRICS
CONSTRUCTION
Bantam Photometric Image
Bantam™ SQ is designed with an inherent 10° bias above nadir. This asymmetric output projects the illumination from the mounting surface towards the path or feature.
Bantam SQ Construction Image
Bantam™ SQ is solid machined 316 stainless steel with security hardware. Available for flat surface mounting.
